Description

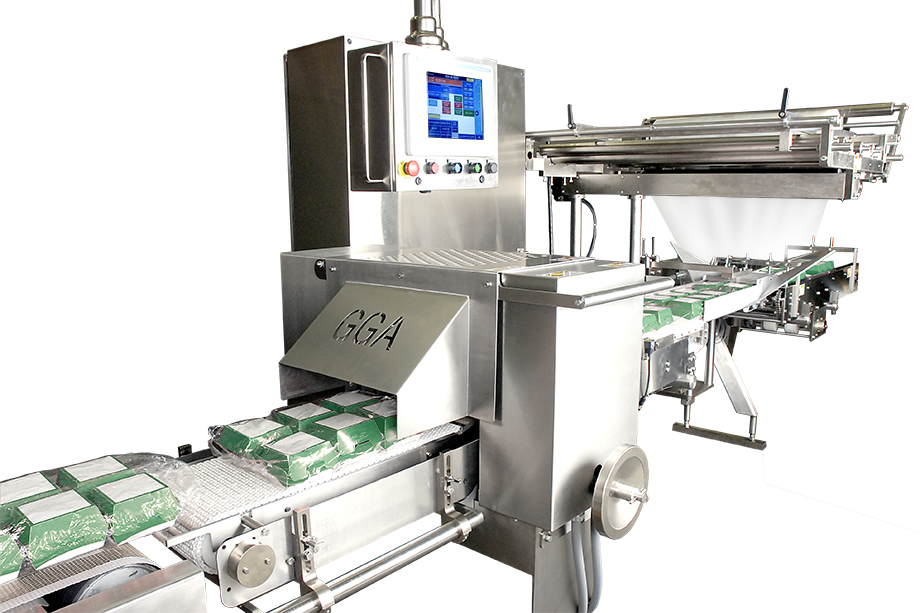

The AccuWrap BA-2000S is a multi-axis, servo-controlled, wrapper designed for high-speed, high-efficiency, and easy maintenance. The BA-2000S is designed to the “no particle trapping” criteria, allowing food particles to fall through; however, it features stainless-steel construction only where food will contact wrapper components. The wrapper therefore accommodates wet wipe down of all conveyors and sealing sections.

The modular construction allows removal of all modules providing the maximum in accessibility, enabling an even more thorough spill clean up or for expedient changeover and versatility for future business requirements. Rails lift up; conveyor belts snap out; conveyors slide out; the former is fast change; and even the fin wheels are modular.

Featuring Allen-Bradley® controls for superior performance, the system provides independently adjustable servo control of longitudinal film travel for the in-line seal, main cross-sealing with rotary hot knife, conveyors and unwind, all of which provide the ultimate in control for packaging production. Over 100 recipes for touch screen retrieval make product changeovers as easy as selecting your favorite TV channels. Product position monitoring for Out Of Position/No Cut and No Product/No Bag means more good packages ready to ship.

The modular design, wipe down capability, and small footprint make the system ideal for both general-purpose and some food packaging applications.

Building-Block Modularity™

The BA-2000S AccuWrap™ Wipe Down Wrapper is designed and build utilizing GGA Packaging's Building-Block Modularity, which is the basic modular design philosophy of our packaging systems. It provides you with a machine that has value, both now and in the future.

Exclusive Features

• • Building-Block Modularity™ for easy
     cleaning and plug-in application
     versatility
• • Open construction for limited food
     particle trapping
• • Advanced electronics for production
     compatible operation
• • Full color touch screen for easy
     operator interface
• • On-screen and remote diagnostics
     to reduce downtime
• •  Bottom static lap seal for standard
     polyethylene shrink film
• • Servo-controlled sealing head for
     high accuracy seal placement
• • 1-up servo end seal head with
     hot knife
• • Up to 300 cycles per minute for
     high-speed packaging
• • Film widhts up to 36" for large
     range of products
• • Small footprint for space efficiency

Additional Features

• • Stainless-steel construction where
     food would contact wrapper
     components for wipe-down cleaning
• • Modular assemblies for expedient
     configuration change and plug-
     in versatility
• • Product position monitoring for
     Out-of-Position/No Cut and No
     Product/No Bag
• • Allen-Bradley® controlLogix
      standard
• • Third-level multi-axis servo system
     to independently optimize all
     functions
• • Full color touch screen for easy
     operator interface
• • On-screen and remote system
     monitoring with diagnostics to
     reduce down time
• • Precision cut and seal with servo-
     controlled crimper for high accuracy
• • Powered Seated Surface Unwind for
     the ultimate in web control

Options

• • Servo-controlled 12" to 32",
     or up to 16" wide film
• • UL Approval or CE Mark option
• • 1- or 2-up cross cut
• • Straight cut or hot
     wire knife
• • Fin, static lap, or thermal lap seal
• • Adjustable 1 belt for narrow
     web for 5'
• • Adjustable 2 belt for wide
     web for 5'
• • Saw tooth under fin feed
     chain option
• • Conveyor section
• • Flight spacing
• • Single or double powered unwind
• • Single or double powered unwind
     overhead (narrow only)

Technical Data

• • Electrical: 230 VAC, three-phase,
     50/60 Hz (isolation
     transformer recommended)
• • Current: Approximately 40 Amps
• • Compressed Air: 1 cfm @ 80 PSIG
• • Speed: up to 300 cycles per minute
     (2,000 linear inches per minute)

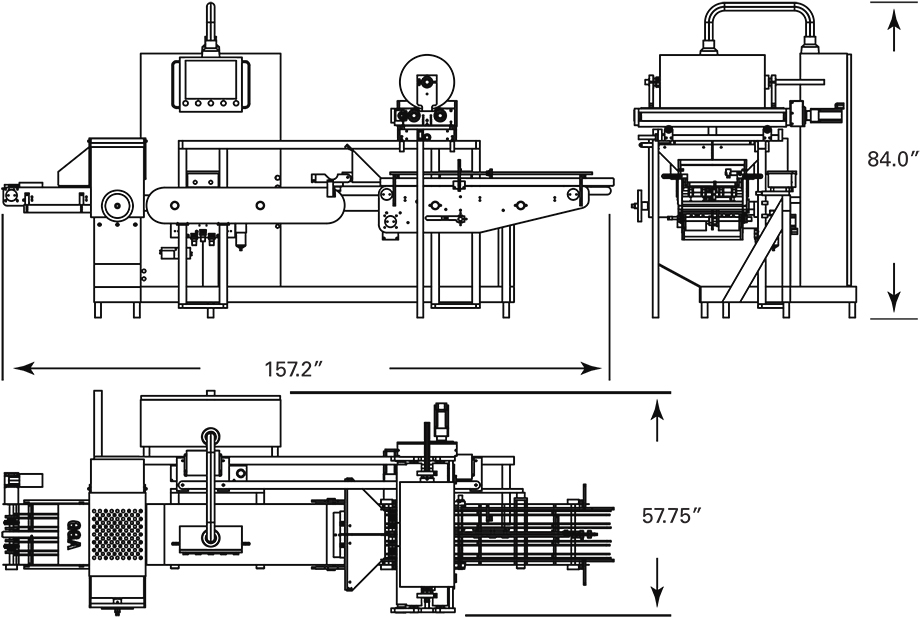

• • Basic footprint: 13’ x 5’
